Jednofazni EI transformatori, za tiskane pločice, prema
Single-phase EI transformers, for printed circuits, according to
Einphasen-Transformatoren, Printtransformatoren, gemäß
IEC 61558-2-4
IEC 61558-1
IEC 61558-1
TIP
TYPE
TYP

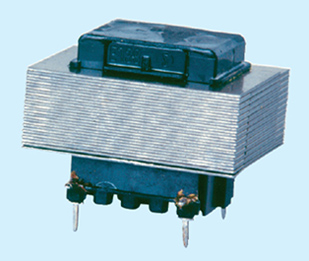

TEO
Nazivna snaga: 1.5 – 20 VA
Tip jezgre: EI
Frekvencija: 50/60 Hz
Montaža: na tiskane pločice
Priključci: na pinove
Klasa izolacije: T40/B
Klasa zaštite: I ili II
Tip mehaničke zaštite: IP 00
Power range: 1.5 – 20 VA
Core type: EI
Frequency: 50/60 Hz
Mounting: printed circuit board
Terminals: connection via solder pins
Insulation class: T40/B
Class of protection: I or II
Type of protection: IP 00
Nennleistung: 1.5 – 10 VA
Kerntyp: EI
Frequenz: 50/60 Hz
Montage: für Leiterplatten
Anschlüsse: für Schweißbolzen
Isolierstoffklasse: T40/B
Schutzklasse: I oder II
Typ des mechanischen Schutzes: IP 00
Mjerna skica / Dimensions /
Maße:
IC T40/B
| Tipska oznaka Type designation Typenkennzeichnung |
Nazivna Snaga Nominal power Nennleistung SN (VA) |
Gubici pr. hoda Idle time losses Leerlaufverluste Po(W) ≤ |
Faktor iskoristivosti Efficiency Wirkungsgrad η ≥ |
Napon kr. spoja Cut-off voltage Kurzschlussspannung uk 75 (%) ≤ |
Dimenzije (mm)/Dimensions (mm) /Maße (mm) |
|||||
| a | b | c | d | e | g(kg) | |||||
| TEO 1.5 | 1,5 | 0,60 | 0,30 | 50 | 38 | 32 | 30 | 4×5 | 25 | 0,30 |
| TEO 2.5 | 2,5 | 0,60 | 0,30 | 50 | 38 | 32 | 30 | 4×5 | 25 | 0,35 |
| TEO 5,0 | 5,0 | 0,60 | 0,55 | 30 | 48 | 40 | 34,5 | 5×5 | 30 | 0,45 |
| TEO 10.0 | 10,0 | 1,00 | 0,72 | 18 | 60 | 50 | 43,0 | 8×5 | 34 | 0,70 |
| TEO 15,0 | 15,0 | 1,00 | 0,72 | 20 | 60 | 50 | 43,0 | 8×5 | 34 | 0,70 |
| TEO 20,0 | 20,0 | 1,80 | 0,75 | 16 | 60 | 50 | 51,5 | 7×5 | 32 | 0,95 |
